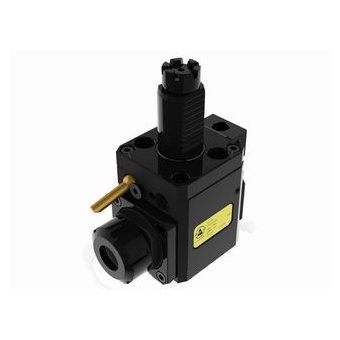

THB-B05.65-40D VDI40-MT-ER32 徑向動力刀座

產(chǎn)品介紹

m_prod2014042500067
◎ VDI40-MT-ER32 Radial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM ?
? ?Dr ...了解更多

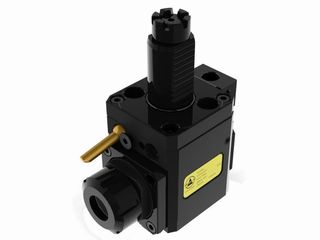

THB-B05.65-40D VDI40-MT-ER32 徑向動力刀座



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

◎ VDI40-MT-ER32 Radial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

?

?

?Dry Cutting & Side Milling
Model：THB-B05.65-40D
Cutting Tool：Carbide Endmills D16 x 4 Flute
Material：S50C
Speed：956 rpm
Feed：320 mm/min?
Ap：5 mm Ae：16 mm?
Q：30 cm3/min

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

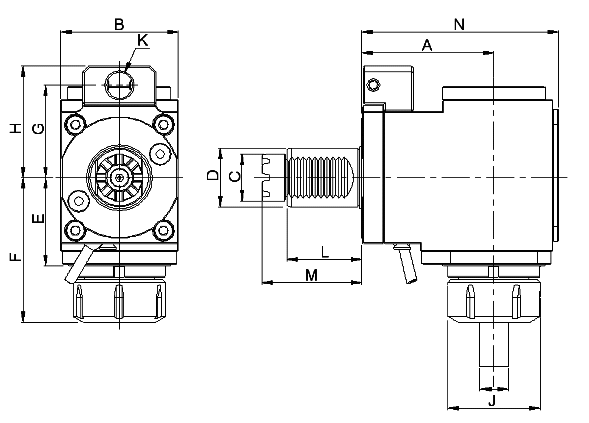

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B05.65-40D 65 76 32 40 49 81.5 63/70 75/82 ER32(3~20) 50 16 51 68 101 5.1

Unit:mm
