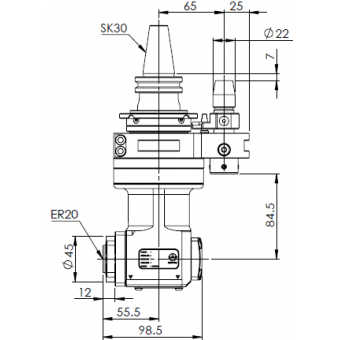

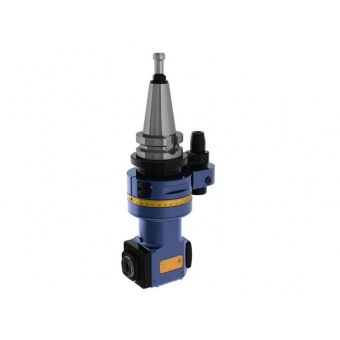

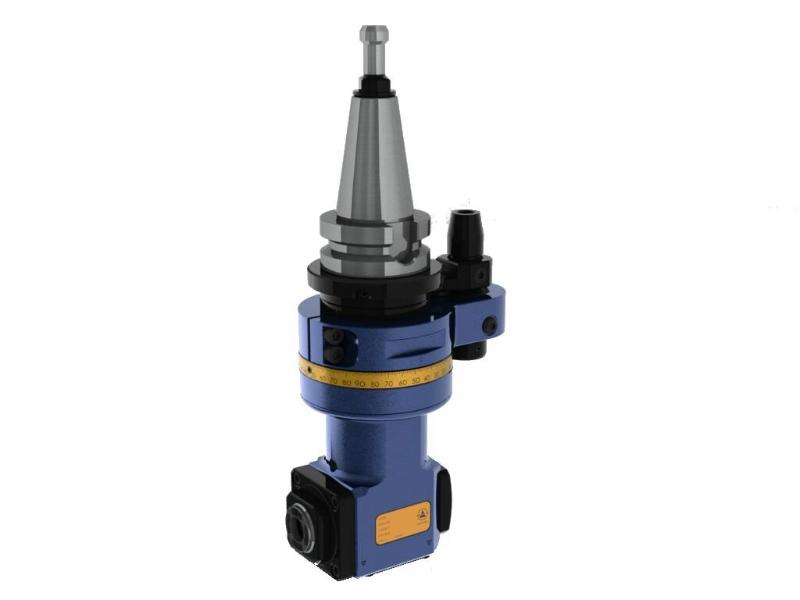

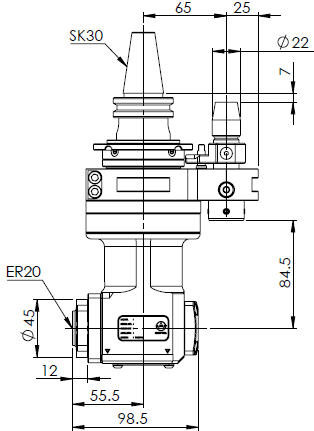

◎?SK30-ER20 90° Aluminum Angle Head (AHM Type-Internal Nut)
◎?Run-out：0.002 mm
◎?Material：Aerospace Aluminum Alloy
◎?R.P.M.：Max. 6000 RPM
◎?Torque：Max. 15 Nm
◎?Drilling：Max. 12 mm
◎?Tapping：Max. M8
◎?Gear Ratio：1：1
◎?Standard Accessory：Open End Wrench, ER I.N. Wrench, ER Nut
◎?Output Rotation：Reverse to Input Rotation
◎?6000 rpm high speed processing. Increases machining efficiency.
◎?Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.
◎?Can be automatic tool changed. Increases productivity.
◎?Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
