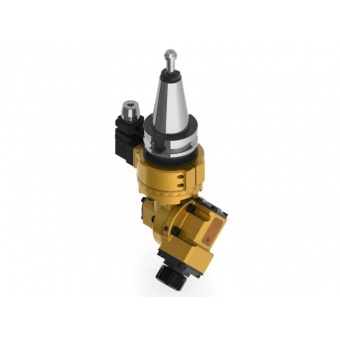

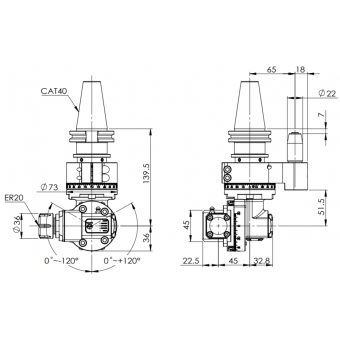

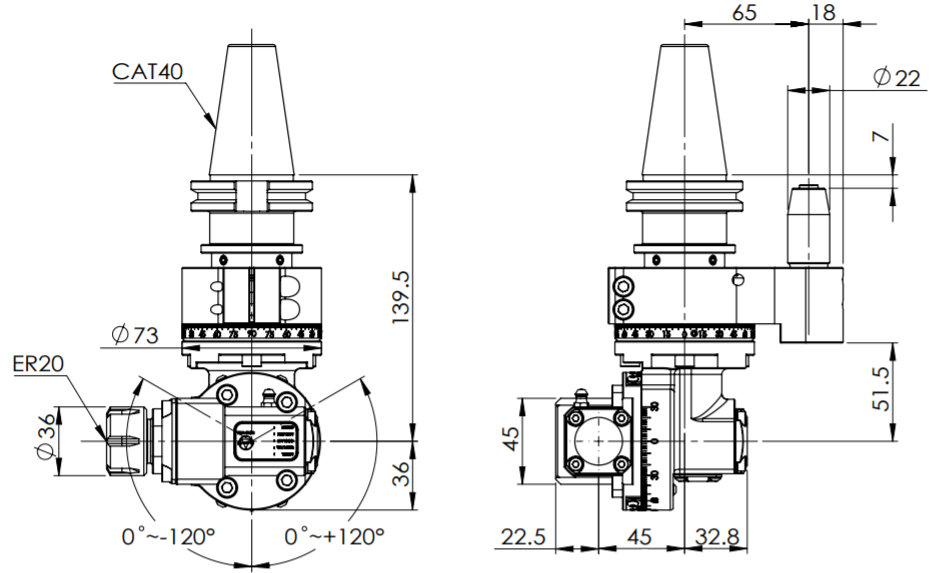

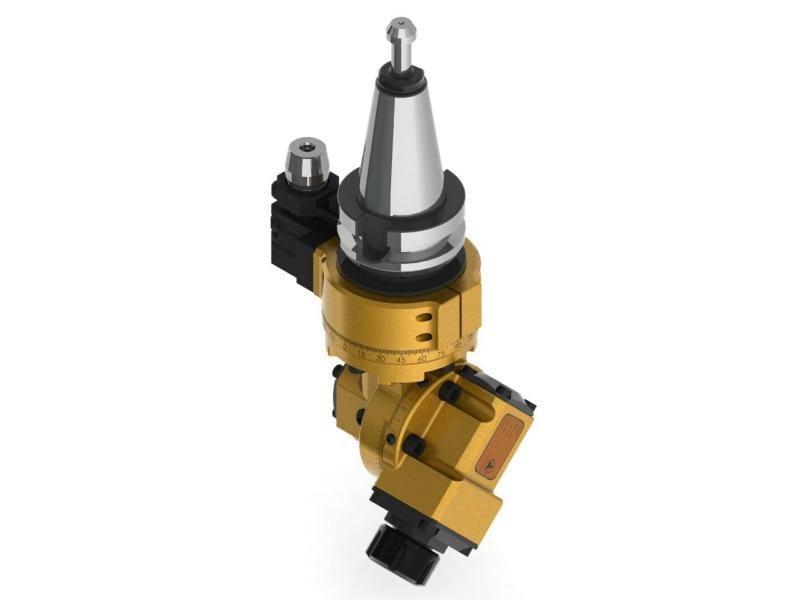

◎ CAT40-ER20?Light Angle Head-Universal (AHL Type)
◎?Run-out：0.002 mm
◎?Material：Alloy Steel
◎?R.P.M.：Max. 6000 RPM
◎?Torque：Max. 9 Nm
◎?Drilling：Max. 10 mm
◎?Tapping：Max. M6
◎?Gear Ratio：1：1
◎?Standard Accessory：Open End?Wrench, ER Wrench, ER Nut
◎?Output Rotation：Same as Input Rotation
◎??Cutting angle can be set from 0°~ ±120°for various applications.
◎??Compact design provides extra strength, oil-proof, dust-proof, and duration.
◎??Can be automatic tool changed. Increases productivity.
◎??Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
