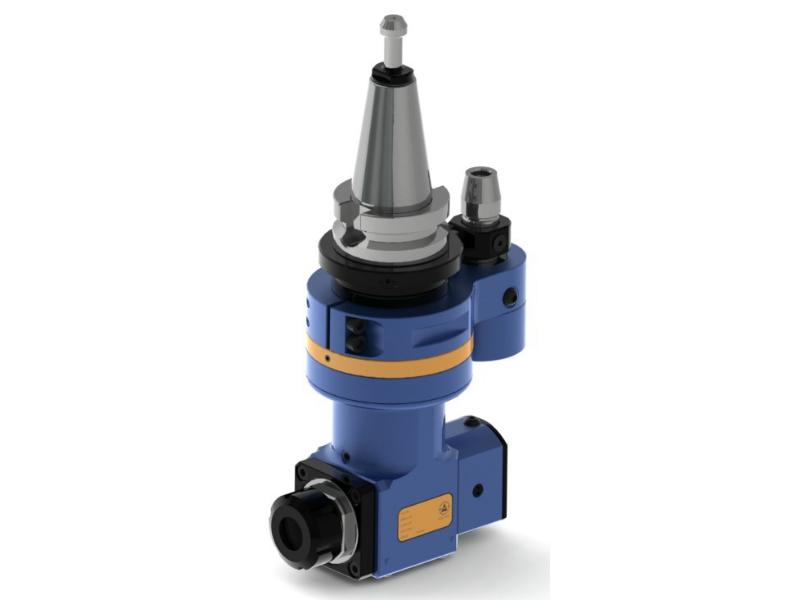

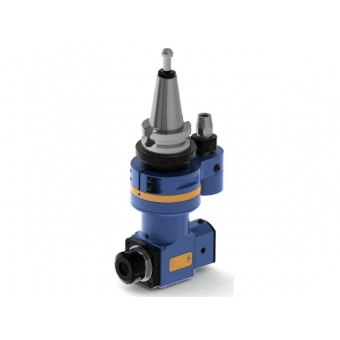

◎BT30-ER25 90° Aluminum Angle Head (AHM Type-Internal Coolant)
◎Run-out：0.002 mm
◎Material：Aerospace Aluminum Alloy
◎R.P.M.：Max. 6000 RPM
◎Torque：Max. 15 Nm
◎Drilling：Max. 12 mm
◎Tapping：Max. M8
◎Gear Ratio：1：1
◎Standard Accessory：Open End Wrench, ER Wrench, ER Nut
◎Output Rotation：Reverse to Input Rotation
◎Max. Coolant Bar：30 bar
◎6000 rpm high speed processing. Increases machining efficiency.
◎Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.
◎Can be automatic tool changed.Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
